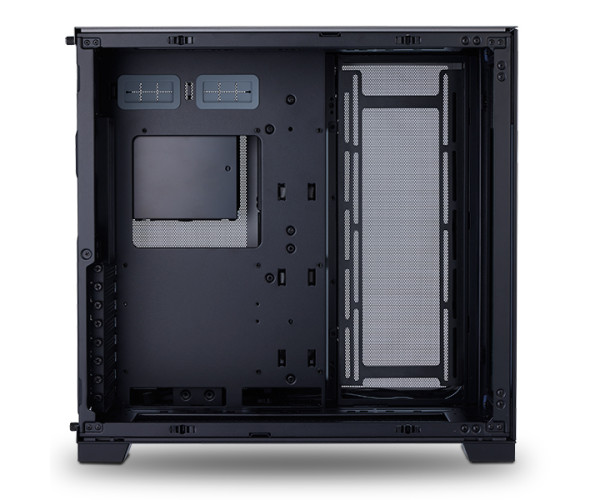

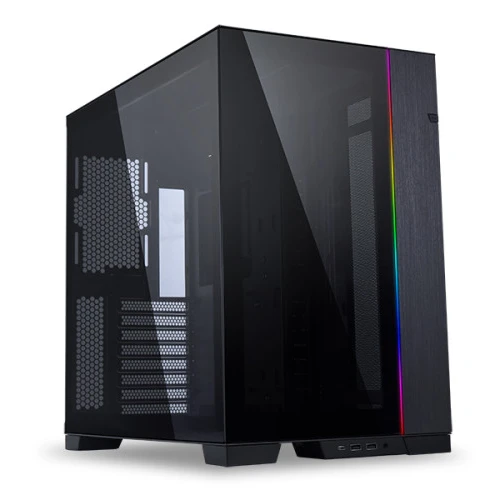

LIAN LI O11 DYNAMIC EVO BK Mid Tower Gaming Case

Brands: Lian Li

SKU: pcx 4763

Details
Model	O11 DYNAMIC EVO
Color	Black
Case Material	4mm Aluminum; 4mm Tempered Glass; 1mm Steel Structure
Motherboard Compatibility	E-ATX (width: under 280mm)/ATX /M-ATX/ITX
Side Panel Window	Tempered Glass Side Panel
Expansion Slots	8
I/O Port	2 × USB 3.0; 1 × USB 3.1 TYPE-C; 1 × HD AUDIO/ MIC; LED Color and Mode button; Reset Button; Power Button
Fan Support	Top: 120mm × 3 or 140mm × 2; Side: 120mm × 3 or 140mm × 2; Bottom: 120mm × 3 or 140mm × 2; Rear: 120mm × 1; On Drive Cage: 60mm × 1
Component Compatibility	GPU LENGTH CLEARANCE: 426 mm; CPU HEIGHT CLEARANCE: 167 mm
Drive Bays	Bottom：2.5” SSD × 4 or 3.5” HDD × 2; Side：2.5” SSD × 4 or 3.5” HDD × 2; Drive Cage：2.5” SSD × 3 or 3.5” HDD × 2 + 2.5” SSD × 1; Cable Management Bar：2.5” SSD × 2; *Only 9 sets of 2.5” SSD mounting pads are provided
Radiator Support	Top: 360mm × 1 or 280mm × 1; Total max thickness: 87.5mm; Side: 360mm × 1 or 280mm × 1; Inner scenario total max thickness: 83mm(120mm fan on top and bottom); 63mm(140mm fan on top and bottom); Outer scenario total max. thickness： 120mm(120mm fan on top and bottom); 100mm(140mm fan on top and bottom); Bottom: 360mm × 1; Total max thickness: 87.5mm
Dimensions	(D)465mm × (W)285mm × (H)459mm

Details

Model

O11 DYNAMIC EVO

Color

Black

Case Material

4mm Aluminum; 4mm Tempered Glass; 1mm Steel Structure

Motherboard Compatibility

E-ATX (width: under 280mm)/ATX /M-ATX/ITX

Side Panel Window

Tempered Glass Side Panel

Features

Expansion Slots

I/O Port

2 × USB 3.0; 1 × USB 3.1 TYPE-C; 1 × HD AUDIO/ MIC; LED Color and Mode button; Reset Button; Power Button

Fan Support

Top: 120mm × 3 or 140mm × 2; Side: 120mm × 3 or 140mm × 2; Bottom: 120mm × 3 or 140mm × 2; Rear: 120mm × 1; On Drive Cage: 60mm × 1

Component Compatibility

GPU LENGTH CLEARANCE: 426 mm; CPU HEIGHT CLEARANCE: 167 mm

Drive Bays

Bottom：2.5” SSD × 4 or 3.5” HDD × 2; Side：2.5” SSD × 4 or 3.5” HDD × 2; Drive Cage：2.5” SSD × 3 or 3.5” HDD × 2 + 2.5” SSD × 1; Cable Management Bar：2.5” SSD × 2; *Only 9 sets of 2.5” SSD mounting pads are provided

Radiator Support

Top: 360mm × 1 or 280mm × 1; *Total max thickness: 87.5mm; Side: 360mm × 1 or 280mm × 1; *Inner scenario total max thickness: 83mm(120mm fan on top and bottom); 63mm(140mm fan on top and bottom); *Outer scenario total max. thickness： 120mm(120mm fan on top and bottom); 100mm(140mm fan on top and bottom); Bottom: 360mm × 1; *Total max thickness: 87.5mm

Dimensions & Weight

Dimensions

(D)465mm × (W)285mm × (H)459mm
