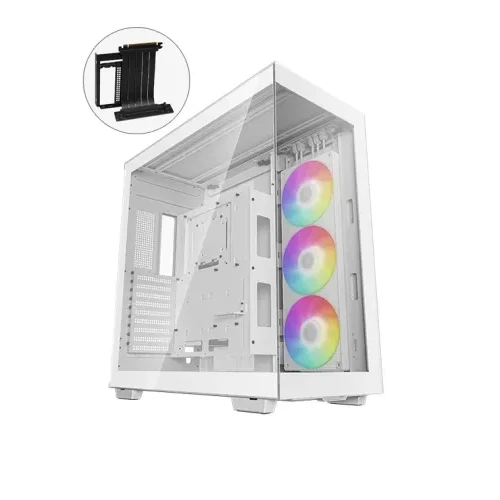

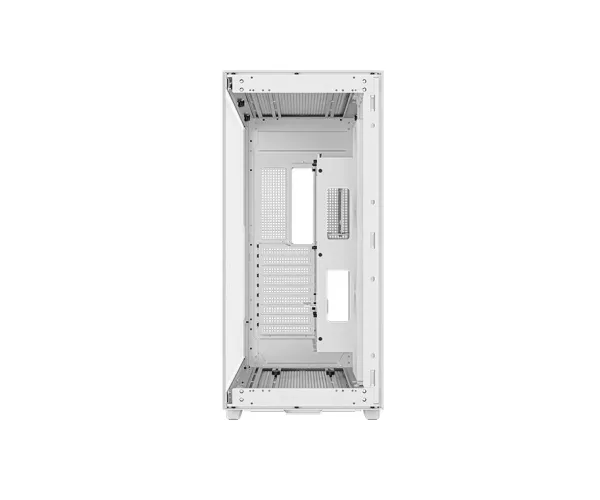

DeepCool CH780 WH ATX+ Panoramic Case

Brands: DeepCool

SKU: pcx 5473

Details
Model	CH780
Color	White
Case Material	ABS+SPCC+Tempered Glass
With Power Supply	No
Motherboard Compatibility	Mini-ITX / M-ATX / ATX / E-ATX
Side Panel Window	Tempered Glass
Expansion Slots	3 Slots
Front Ports	USB3.0×4, Audio×1, Type-C×1
Fan Support	Top: 3×120 / 3×140 / 2×180 / 2×200mm; Side: 3×120 / 3×140mm; Bottom: 3×120 / 3×140 / 2×180 / 2×200mm
Component Compatibility	CPU Cooler Height Limit: 132mm; GPU Length Limit: 480mm; Accessory: PCIe 4.0 riser cable, Vertical GPU mount; Power Supply Type: ATX PS2（maximum length: 180mm）
Drive Bays	3.5″ Drive Bays: 2; 2.5″ Drive Bays: 2+1
Radiator Support	Top: 120/140/240/280/360/420mm; Side: 120/140/240/280/360/420mm; Bottom: 120/140/240/280/360/420mm
Dimensions	528×250×551mm(L×W×H)
Weight	13.7Kg
Warranty	1 Year

Details

Model

CH780

Color

White

Case Material

ABS+SPCC+Tempered Glass

With Power Supply

Motherboard Compatibility

Mini-ITX / M-ATX / ATX / E-ATX

Side Panel Window

Tempered Glass

Features

Expansion Slots

3 Slots

Front Ports

USB3.0×4, Audio×1, Type-C×1

Fan Support

Top: 3×120 / 3×140 / 2×180 / 2×200mm; Side: 3×120 / 3×140mm; Bottom: 3×120 / 3×140 / 2×180 / 2×200mm

Component Compatibility

CPU Cooler Height Limit: 132mm; GPU Length Limit: 480mm; Accessory: PCIe 4.0 riser cable, Vertical GPU mount; Power Supply Type: ATX PS2（maximum length: 180mm）

Drive Bays

3.5″ Drive Bays: 2; 2.5″ Drive Bays: 2+1

Radiator Support

Top: 120/140/240/280/360/420mm; Side: 120/140/240/280/360/420mm; Bottom: 120/140/240/280/360/420mm

Dimensions & Weight

Dimensions

528×250×551mm(L×W×H)

Weight

13.7Kg

Warranty & Others

Warranty

1 Year
